   Wykrojniki Blanking Angle‑Lock™ Frames

STANDARD FRAMES QUICK SET FRAMES RECEIVER SYSTEM
Standard frames
 		 QUICK SET FRAMES

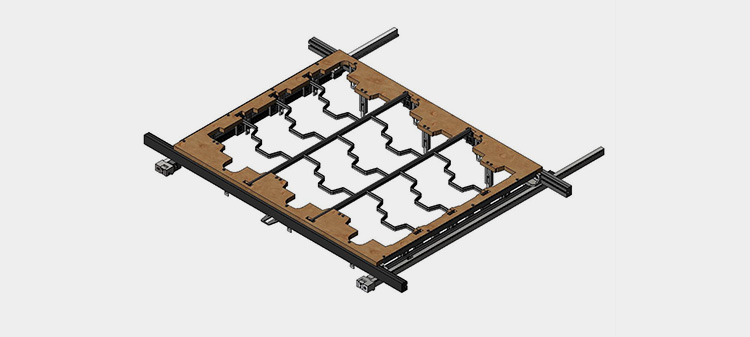

RECEIVER SYSTEM

STANDARD FRAMES Angle‑Lock™ Kits

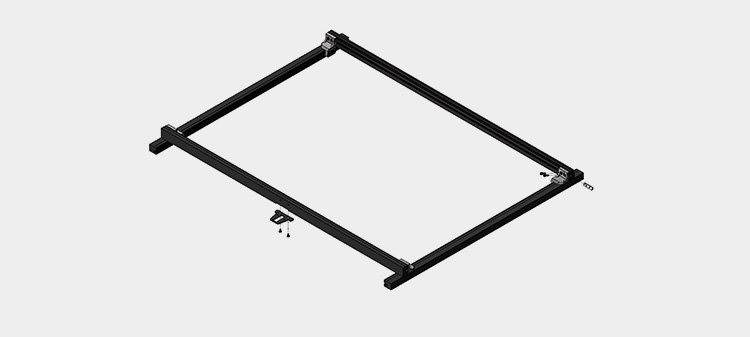

Frame Kits

Frame Kits for Angle‑Lock™ STANDARD FRAMES

Ilość: 1 szt.
Opis Numer
Frame Kit 102-CER, 103-ER BFA01001
Frame Kit 104-ER BFA01002
Frame Kit 106-PER / LER BFA01003
Frame Kit 130-ER BFA01004
Frame Kit 142-ER BFA01005
Frame Kit 142-CER BFA01006
Frame Kit 145-PER BFA01007
Frame Kit 162-CER BFA01008
Frame Kit 1600-ER BFA01009

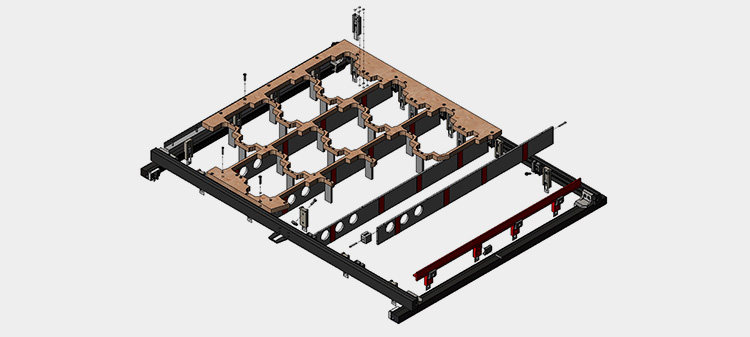

Flat Top Tool Kits

Flat Top Tool Kits for Angle‑Lock™ STANDARD FRAMES

Ilość: 1 szt.
Opis Numer
Flat Top Tool Kit 102-CER / 103-ER BFA02001
Flat Top Tool Kit 104-ER BFA02002
Flat Top Tool Kit 106-PER / LER BFA02003
Flat Top Tool Kit 130-ER BFA02004
Flat Top Tool Kit 142-ER BFA02005
Flat Top Tool Kit 142-CER BFA02006
Flat Top Tool Kit 145-PER BFA02007
Flat Top Tool Kit 162-CER BFA02008

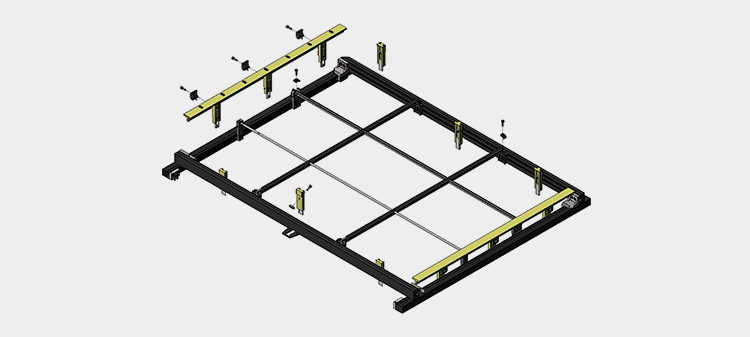

Universal Tool Kits for Angle‑Lock™ STANDARD FRAMES

Universal Tool Kits for Angle‑Lock™ STANDARD FRAMES

Ilość: 1 szt.
Opis Numer
Universal Tool Kit 102-CER / 103-ER BFA03001
Universal Tool Kit 104-ER BFA03002
Universal Tool Kit 106-PER / LER BFA03003
Universal Tool Kit 130-ER BFA03004
Universal Tool Kit 142-ER / 1420-ER BFA03005
Universal Tool Kit 142-CER BFA03006
Universal Tool Kit 145-PER BFA03007
Universal Tool Kit SP-162-CER BFA03008

Frame Rails for Angle‑Lock™ STANDARD FRAMES

Universal Tool Kits for Angle‑Lock™ STANDARD FRAMES

Ilość: 1 szt.

Opis Numer
  Przód Tył Lewa Prawa
Frame Rail SP 102/103 BFB01001 BFB01009 BFB01018 BFB01026
Frame Rail SP 104 BFB01002 BFB01010 BFB01018 BFB01026
Frame Rail SP 106 BFB01003 BFB01011 BFB01019 BFB01027
Frame Rail SP 130 BFB01004 BFB01012 BFB01020 BFB01028
Frame Rail SP 142-ER BFB01005 BFB01013 BFB01021 BFB01029
Frame Rail SP 142-CER BFB01005 BFB01014 BFB01022 BFB01030
Frame Rail SP 145 BFB01006 BFB01015 BFB01023 BFB01031
Frame Rail SP 162 BFB01007 BFB01016 BFB01024 BFB01032
Frame Rail SP 1600-ER BFB01008 BFB01017 BFB01025 BFB01033

Frame Assembly Components for Angle‑Lock™

Universal Tool Kits for Angle‑Lock™ STANDARD FRAMES

Angle‑Lock™ Components

  Description Unit Order no.
BFB07001-SCREW – FLAT SHCS – M3 × 8mm Screw – flat SHCS – M3 × 8 mm 50 pcs. BFB07001
BFB07002-SCREW – FLAT SHCS – M3 × 25mm Screw – flat SHCS – M3 × 25 mm 50 pcs. BFB07002
BFB07003-SCREW – FLAT SHCS – M4 × 25mm Screw – flat SHCS – M4 × 25 mm 50 pcs. BFB07003
BFB07004-SCREW – LOW HEAD SHCS M5 × 6mm Screw – low head SHCS M5 × 6 mm 50 pcs. BFB07004
BFB07005-SCREW – LOW HEAD SHCS M5 × 16mm Screw – low head SHCS M5 × 16 mm 50 pcs. BFB07005
BFB07006-Screw Special Low Head SHCS M5-8mm Screw – special low head SHCS M5 × 8 mm 50 pcs. BFB07006
BFB07007-SCREW – SPECIAL LOW HEAD SHCS M5 × 16mm Screw – special low head SHCS M5 × 16 mm 50 pcs. BFB07007
BFB07008-SCREW – STANDARD SHCS M5 × 10mm Screw – standard SHCS M5 × 10 mm 50 pcs. BFB07008
BFB07009-SCREW – STANDARD SHCS M5 × 20mm Screw – standard SHCS M5 × 20 mm 50 pcs. BFB07009
BFB07010-SCREW – button SHCS – M6 × 12 mm h01004 Screw – button SHCS – M6 × 12 mm 50 pcs. BFB07010

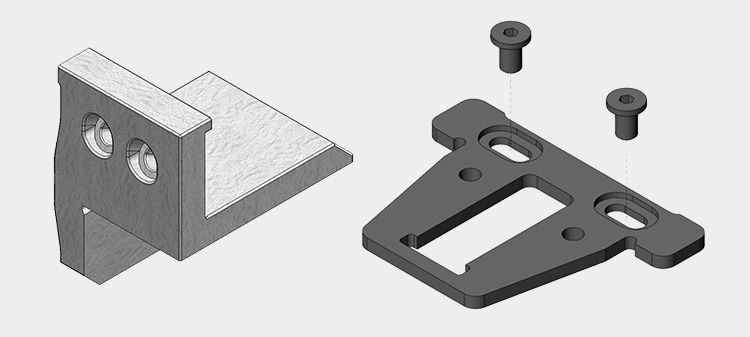

QUICK SET FRAMES – Components

  Description Unit Order no.
BFB04101-Quick-Set Rear Left Corner Bracket QUICK SET Rear Corner Bracket – Left 5 pcs. BFB04101
BFB04102-Quick-Set Rear Right Corner Bracket QUICK SET Rear Corner Bracket – Right 5 pcs. BFB04102
BFB04103-Quick-Set Grid Support QUICK SET Grid Support 5 pcs. BFB04103
BFB04104-Quick-Set Bushing Kit QUICK SET Bushing Kit 5 pcs. BFB04104
BFB04105-Dovetail Nut Corner – Bracket Dovetail Nut Corner – Bracket 50 pcs. BFB04105
BFB04106-Dovetail Nut-Accessory Dovetail Nut – Accessory 50 pcs. BFB04106
BFB04107-CenterlineBracket Bottom Mount Centerline Bracket – Bottom Mount 10 pcs. BFB04107
BFB04109-Screw–special-low-head-SHCS-M5×20mm Screw – special low head SHCS M5 × 20 mm 50 pcs. BFB04109
BFB04110-Screw–special-low-head-SHCS-M5×24mm Screw – special low head SHCS M5 × 24 mm 50 pcs. BFB04110
BFB04111-Screw-SHCS-M5×16mm Screw – SHCS M5 × 16 mm 50 pcs. BFB04111
BFB04113-Quick-Set Clip QUICK SET Clip 20 pcs. BFB04113
BFB04114-Quick-Set-Corner-Bracket-Left QUICK SET Corner Bracket – Left 5 pcs. BFB04114
BFB04115-Quick-Set-Corner-Bracket-Right QUICK SET Corner Bracket – Right 5 pcs. BFB04115
  Grid Mounting Bracket 50 pcs. BFB04116

STANDARD and RECEIVER SYSTEM – Components

  Description Unit Order no.
BFB04114-Quick-Set-Corner-Bracket-Left Corner Bracket – Left 5 pcs. BFB04114
BFB04115-Quick-Set-Corner-Bracket-Right Corner Bracket – Right 5 pcs. BFB04115
BFB04105-Dovetail Nut Corner – Bracket Dovetail Nut Corner Bracket 50 pcs. BFB04105

Support Rail – Flat Top Tool – Components

  Description Unit Order no.
BFB02101-Support Rail End Support Rail End 5 pcs. BFB02101
BFB02102-Pin Insertion Guide Tool Pin Insertion Guide Tool 1 pc. BFB02102
BFB02103-Hardened Pin 3.5 × 28mm Hardened Pin ø 3.5 × 28 mm 50 pcs. BFB02103
BFB02104-Spring Clip – Screwless Support Rail Spring Clip (Screwless Support Rail) 25 pcs. BFB02104

Frame Tools

  Description Unit Order no.

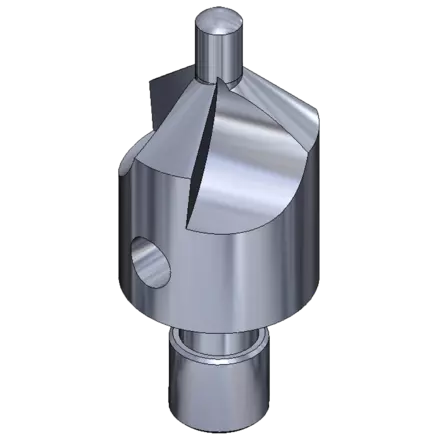

BFB08001-Countersink Cutter – 3mm Countersink Cutter – 3 mm 1 pc. BFB08001
BFB08002-Countersink Cutter – 4mm Countersink Cutter – 4 mm 1 pc. BFB08002
BFB08003-Counterbore Cutter – 5mm Counterbore Cutter – 5 mm 1 pc. BFB08003
BFB08004-Adjustable Counterbore-Countersink Kit Adjustable Counterbore / Countersink Kit 1 pc. BFB08004
BFB08006-Receiver System Frame Clamp RECEIVER SYSTEM Frame Clamp 2 pcs. BFB08006

Adhesive Runner

  Description Unit Order no.
BFB07024-Adhesive-Runner-5.0 × 3.0mm Adhesive Runner 5.0 × 3.0 mm × 1200 mm 10 pcs. BFB07024
BFB07025-Adhesive-Runner-6.0 × 3.0mm Adhesive Runner 5.0 × 3.0 mm × 1200 mm 10 pcs. BFB07025
BFB07026-Adhesive-Runner-8.0 × 3.0mm Adhesive Runner 5.0 × 3.0 mm × 1200 mm 10 pcs. BFB07026

Machine Frame Mounting Hardware

  Description Unit Order no.
BFB07011-Quick Lock-Lower Left Quick Lock Lower Left 5 pcs. BFB07011
BFB07012-Quick Lock-Lower Right Quick Lock Lower Right 5 pcs. BFB07012
BFB07013-Quick Lock Kit Quick Lock Kit 1 pc. BFB07013
BFB07014-Bracket-Centerline – Front Mount Bracket – Centerline – Front Mount 10 pcs. BFB07014
BFB07015-Overclamp Overclamp 2 pcs. BFB07015
BFB07016-Stop Bracket PER Stop Bracket PER 10 pcs. BFB07016
BFB07017-Stop Bracket Kit PER ER Stop Bracket Kit PER / ER 5 pcs. BFB07017
BFB07018-Gripper Finger Support Gripper Finger Support 2 pcs. BFB07018
BFB07019-Mounting Bracket SP 142-ER Mounting Bracket SP 142-ER 2 pcs. BFB07019
BFB07020-Mounting Bracket Kit SP-142 Mounting Bracket Kit SP 142-ER  1 pc. BFB07020
BFB07021-Overclamp Left SP 142-ER Overclamp Left SP 142-ER 5 pcs. BFB07021
BFB07022-Overclamp Right SP 142-ER Overclamp Right SP 142-ER 5 pcs.  BFB07022
BFB07023-Overclamp Set SP 142-ER Overclamp Set SP 142-ER 1 pc. BFB07023

Lower Board Support

  Description Unit Order no.
BFB07111-Lower-Board-Support-Body Lower Board Support Body 10 pcs. BFB07111
BFB07112-Lower-Board-Support-Assembly Lower Board Support Assembly 10 pcs. BFB07112

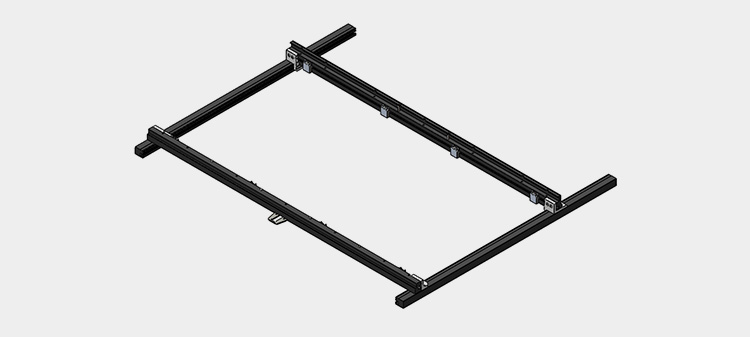

QUICK SET FRAMES Angle‑Lock™ Kits

Frame Kits for Angle‑Lock™ QUICK SET FRAMES

Unit: 1 pc.
Description Order no.
QUICK SET Frame Kit 102-CER / 103-ER BFA04001
QUICK SET Frame Kit 104-ER BFA04002
QUICK SET Frame Kit 106-PER / LER BFA04003
QUICK SET Frame Kit 130-ER BFA04004
QUICK SET Frame Kit 142-ER BFA04005
QUICK SET Frame Kit 142-CER BFA04006
QUICK SET Frame Kit 145-PER BFA04007

Frame Rails for Angle‑Lock™ QUICK SET FRAMES

Unit: 1 pc.
Description Order no.
  Front Rear Left Right
Frame Rail SP 102/103 BFB04001  BFB04007 BFB01018 BFB01026
Frame Rail SP 104 BFB04002  BFB04008 BFB01018 BFB01026
Frame Rail SP 106 BFB04003  BFB04009 BFB01019 BFB01027
Frame Rail SP 130 BFB04004  BFB04010 BFB01020 BFB01028
Frame Rail SP 142-ER BFB04005  BFB04011 BFB01021 BFB01029
Frame Rail SP 142-CER BFB04005  BFB04011 BFB01022 BFB01030
Frame Rail SP 145 BFB04006  BFB04012 BFB01023 BFB01031

Frame Assembly Components for Angle‑Lock™

Frame Assembly Components for Angle‑Lock™

Universal Tool Kits for Angle‑Lock™ STANDARD FRAMES

Angle‑Lock™ Components

  Description Unit Order no.
BFB07001-SCREW – FLAT SHCS – M3 × 8mm Screw – flat SHCS – M3 × 8 mm 50 pcs. BFB07001
BFB07002-SCREW – FLAT SHCS – M3 × 25mm Screw – flat SHCS – M3 × 25 mm 50 pcs. BFB07002
BFB07003-SCREW – FLAT SHCS – M4 × 25mm Screw – flat SHCS – M4 × 25 mm 50 pcs. BFB07003
BFB07004-SCREW – LOW HEAD SHCS M5 × 6mm Screw – low head SHCS M5 × 6 mm 50 pcs. BFB07004
BFB07005-SCREW – LOW HEAD SHCS M5 × 16mm Screw – low head SHCS M5 × 16 mm 50 pcs. BFB07005
BFB07006-Screw Special Low Head SHCS M5-8mm Screw – special low head SHCS M5 × 8 mm 50 pcs. BFB07006
BFB07007-SCREW – SPECIAL LOW HEAD SHCS M5 × 16mm Screw – special low head SHCS M5 × 16 mm 50 pcs. BFB07007
BFB07008-SCREW – STANDARD SHCS M5 × 10mm Screw – standard SHCS M5 × 10 mm 50 pcs. BFB07008
BFB07009-SCREW – STANDARD SHCS M5 × 20mm Screw – standard SHCS M5 × 20 mm 50 pcs. BFB07009
BFB07010-SCREW – button SHCS – M6 × 12 mm h01004 Screw – button SHCS – M6 × 12 mm 50 pcs. BFB07010

QUICK SET FRAMES – Components

  Description Unit Order no.
BFB04101-Quick-Set Rear Left Corner Bracket QUICK SET Rear Corner Bracket – Left 5 pcs. BFB04101
BFB04102-Quick-Set Rear Right Corner Bracket QUICK SET Rear Corner Bracket – Right 5 pcs. BFB04102
BFB04103-Quick-Set Grid Support QUICK SET Grid Support 5 pcs. BFB04103
BFB04104-Quick-Set Bushing Kit QUICK SET Bushing Kit 5 pcs. BFB04104
BFB04105-Dovetail Nut Corner – Bracket Dovetail Nut Corner – Bracket 50 pcs. BFB04105
BFB04106-Dovetail Nut-Accessory Dovetail Nut – Accessory 50 pcs. BFB04106
BFB04107-CenterlineBracket Bottom Mount Centerline Bracket – Bottom Mount 10 pcs. BFB04107
BFB04109-Screw–special-low-head-SHCS-M5×20mm Screw – special low head SHCS M5 × 20 mm 50 pcs. BFB04109
BFB04110-Screw–special-low-head-SHCS-M5×24mm Screw – special low head SHCS M5 × 24 mm 50 pcs. BFB04110
BFB04111-Screw-SHCS-M5×16mm Screw – SHCS M5 × 16 mm 50 pcs. BFB04111
BFB04113-Quick-Set Clip QUICK SET Clip 20 pcs. BFB04113
BFB04114-Quick-Set-Corner-Bracket-Left QUICK SET Corner Bracket – Left 5 pcs. BFB04114
BFB04115-Quick-Set-Corner-Bracket-Right QUICK SET Corner Bracket – Right 5 pcs. BFB04115
  Grid Mounting Bracket 50 pcs. BFB04116

STANDARD and RECEIVER SYSTEM – Components

  Description Unit Order no.
BFB04114-Quick-Set-Corner-Bracket-Left Corner Bracket – Left 5 pcs. BFB04114
BFB04115-Quick-Set-Corner-Bracket-Right Corner Bracket – Right 5 pcs. BFB04115
BFB04105-Dovetail Nut Corner – Bracket Dovetail Nut Corner Bracket 50 pcs. BFB04105

Support Rail – Flat Top Tool – Components

  Description Unit Order no.
BFB02101-Support Rail End Support Rail End 5 pcs. BFB02101
BFB02102-Pin Insertion Guide Tool Pin Insertion Guide Tool 1 pc. BFB02102
BFB02103-Hardened Pin 3.5 × 28mm Hardened Pin ø 3.5 × 28 mm 50 pcs. BFB02103
BFB02104-Spring Clip – Screwless Support Rail Spring Clip (Screwless Support Rail) 25 pcs. BFB02104

Frame Tools

  Description Unit Order no.
BFB08001-Countersink Cutter – 3mm Countersink Cutter – 3 mm 1 pc. BFB08001
BFB08002-Countersink Cutter – 4mm Countersink Cutter – 4 mm 1 pc. BFB08002
BFB08003-Counterbore Cutter – 5mm Counterbore Cutter – 5 mm 1 pc. BFB08003
BFB08004-Adjustable Counterbore-Countersink Kit Adjustable Counterbore / Countersink Kit 1 pc. BFB08004
BFB08006-Receiver System Frame Clamp RECEIVER SYSTEM Frame Clamp 2 pcs. BFB08006

Adhesive Runner

  Description Unit Order no.
BFB07024-Adhesive-Runner-5.0 × 3.0mm Adhesive Runner 5.0 × 3.0 mm × 1200 mm 10 pcs. BFB07024
BFB07025-Adhesive-Runner-6.0 × 3.0mm Adhesive Runner 5.0 × 3.0 mm × 1200 mm 10 pcs. BFB07025
BFB07026-Adhesive-Runner-8.0 × 3.0mm Adhesive Runner 5.0 × 3.0 mm × 1200 mm 10 pcs. BFB07026

Machine Frame Mounting Hardware

  Description Unit Order no.
BFB07011-Quick Lock-Lower Left Quick Lock Lower Left 5 pcs. BFB07011
BFB07012-Quick Lock-Lower Right Quick Lock Lower Right 5 pcs. BFB07012
BFB07013-Quick Lock Kit Quick Lock Kit 1 pc. BFB07013
BFB07014-Bracket-Centerline – Front Mount Bracket – Centerline – Front Mount 10 pcs. BFB07014
BFB07015-Overclamp Overclamp 2 pcs. BFB07015
BFB07016-Stop Bracket PER Stop Bracket PER 10 pcs. BFB07016
BFB07017-Stop Bracket Kit PER ER Stop Bracket Kit PER / ER 5 pcs. BFB07017
BFB07018-Gripper Finger Support Gripper Finger Support 2 pcs. BFB07018
BFB07019-Mounting Bracket SP 142-ER Mounting Bracket SP 142-ER 2 pcs. BFB07019
BFB07020-Mounting Bracket Kit SP-142 Mounting Bracket Kit SP 142-ER  1 pc. BFB07020
BFB07021-Overclamp Left SP 142-ER Overclamp Left SP 142-ER 5 pcs. BFB07021
BFB07022-Overclamp Right SP 142-ER Overclamp Right SP 142-ER 5 pcs.  BFB07022
BFB07023-Overclamp Set SP 142-ER Overclamp Set SP 142-ER 1 pc. BFB07023

Lower Board Support

  Description Unit Order no.
BFB07111-Lower-Board-Support-Body Lower Board Support Body 10 pcs. BFB07111
BFB07112-Lower-Board-Support-Assembly Lower Board Support Assembly 10 pcs. BFB07112

RECEIVER SYSTEM Angle‑Lock™ Kits

Frame Kits for Angle‑Lock™ RECEIVER SYSTEM

Unit: 1 pc.
Description Order no.
RECEIVER SYSTEM Frame Kit 102-CER, 103-ER BFA05001
RECEIVER SYSTEM Frame Kit 104-ER BFA05002
RECEIVER SYSTEM Frame Kit 106-PER / LER BFA05003
RECEIVER SYSTEM Frame Kit 130-ER BFA05004
RECEIVER SYSTEM Frame Kit 142-ER BFA05005
RECEIVER SYSTEM Frame Kit 142-CER BFA05006
RECEIVER SYSTEM Frame Kit 145-PER BFA05007
RECEIVER SYSTEM Frame Kit 162-CER BFA05008
RECEIVER SYSTEM Frame Kit 1600-ER BFA05009

Frame Rails for Angle‑Lock™ RECEIVER SYSTEM

Unit: 1 pc.
Description Order no.
  Front Rear Left Right
Frame Rail SP 102/103 BFB01001 BFB01009 BFB06001 BFB06009
Frame Rail SP 104 BFB01002 BFB01010 BFB06001 BFB06009
Frame Rail SP 106 BFB01003 BFB01011 BFB06002 BFB06010
Frame Rail SP 130 BFB01004 BFB01012 BFB06003 BFB06011
Frame Rail SP 142-ER BFB01005 BFB01013 BFB06004 BFB06012
Frame Rail SP 142-CER BFB01005 BFB01014 BFB06005 BFB06013
Frame Rail SP 145 BFB01006 BFB01015 BFB06006 BFB06014
Frame Rail SP 162 BFB01007 BFB01016 BFB06007 BFB06015
Frame Rail SP 1600-ER BFB01008 BFB01017 BFB06008 BFB06016

Frame Rail Kits for RECEIVER SYSTEM / Angle‑Lock™ Kits

Unit: 1 pc.
Description Order no.
RECEIVER SYSTEM Rail Kit 102-CER, 103-ER BFA06001
RECEIVER SYSTEM Rail Kit 104-ER BFA06002
RECEIVER SYSTEM Rail Kit 106-PER / LER BFA06003
RECEIVER SYSTEM Rail Kit 130-ER BFA06004
RECEIVER SYSTEM Rail Kit 142-ER BFA06005
RECEIVER SYSTEM Rail Kit 142-CER BFA06006
RECEIVER SYSTEM Rail Kit 145-PER BFA06007
RECEIVER SYSTEM Rail Kit 162-CER BFA06008
RECEIVER SYSTEM Rail Kit 1600-ER BFA06009

Components

  Description Unit Order no.
BFB07001-SCREW – FLAT SHCS – M3 × 8mm Screw – flat SHCS – M3 × 8 mm 50 pcs. BFB07001
BFB07002-SCREW – FLAT SHCS – M3 × 25mm Screw – flat SHCS – M3 × 25 mm 50 pcs. BFB07002
BFB07003-SCREW – FLAT SHCS – M4 × 25mm Screw – flat SHCS – M4 × 25 mm 50 pcs. BFB07003
BFB07004-SCREW – LOW HEAD SHCS M5 × 6mm Screw – low head SHCS M5 × 6 mm 50 pcs. BFB07004
BFB07005-SCREW – LOW HEAD SHCS M5 × 16mm Screw – low head SHCS M5 × 16 mm 50 pcs. BFB07005
BFB07006-Screw Special Low Head SHCS M5-8mm Screw – special low head SHCS M5 × 8 mm 50 pcs. BFB07006
BFB07007-SCREW – SPECIAL LOW HEAD SHCS M5 × 16mm Screw – special low head SHCS M5 × 16 mm 50 pcs. BFB07007
BFB07008-SCREW – STANDARD SHCS M5 × 10mm Screw – standard SHCS M5 × 10 mm 50 pcs. BFB07008
BFB07009-SCREW – STANDARD SHCS M5 × 20mm Screw – standard SHCS M5 × 20 mm 50 pcs. BFB07009
BFB07010-SCREW – button SHCS – M6 × 12 mm h01004 Screw – button SHCS – M6 × 12 mm 50 pcs. BFB07010

QUICK SET FRAMES – Components

  Description Unit Order no.
BFB04101-Quick-Set Rear Left Corner Bracket QUICK SET Rear Corner Bracket – Left 5 pcs. BFB04101
BFB04102-Quick-Set Rear Right Corner Bracket QUICK SET Rear Corner Bracket – Right 5 pcs. BFB04102
BFB04103-Quick-Set Grid Support QUICK SET Grid Support 5 pcs. BFB04103
BFB04104-Quick-Set Bushing Kit QUICK SET Bushing Kit 5 pcs. BFB04104
BFB04105-Dovetail Nut Corner – Bracket Dovetail Nut Corner – Bracket 50 pcs. BFB04105
BFB04106-Dovetail Nut-Accessory Dovetail Nut – Accessory 50 pcs. BFB04106
BFB04107-CenterlineBracket Bottom Mount Centerline Bracket – Bottom Mount 10 pcs. BFB04107
BFB04109-Screw–special-low-head-SHCS-M5×20mm Screw – special low head SHCS M5 × 20 mm 50 pcs. BFB04109
BFB04110-Screw–special-low-head-SHCS-M5×24mm Screw – special low head SHCS M5 × 24 mm 50 pcs. BFB04110
BFB04111-Screw-SHCS-M5×16mm Screw – SHCS M5 × 16 mm 50 pcs. BFB04111
BFB04113-Quick-Set Clip QUICK SET Clip 20 pcs. BFB04113
BFB04114-Quick-Set-Corner-Bracket-Left QUICK SET Corner Bracket – Left 5 pcs. BFB04114
BFB04115-Quick-Set-Corner-Bracket-Right QUICK SET Corner Bracket – Right 5 pcs. BFB04115
  Grid Mounting Bracket 50 pcs. BFB04116

STANDARD and RECEIVER SYSTEM – Components

  Description Unit Order no.
BFB04114-Quick-Set-Corner-Bracket-Left Corner Bracket – Left 5 pcs. BFB04114
BFB04115-Quick-Set-Corner-Bracket-Right Corner Bracket – Right 5 pcs. BFB04115
BFB04105-Dovetail Nut Corner – Bracket Dovetail Nut Corner Bracket 50 pcs. BFB04105

Support Rail – Flat Top Tool – Components

  Description Unit Order no.
BFB02101-Support Rail End Support Rail End 5 pcs. BFB02101
BFB02102-Pin Insertion Guide Tool Pin Insertion Guide Tool 1 pc. BFB02102
BFB02103-Hardened Pin 3.5 × 28mm Hardened Pin ø 3.5 × 28 mm 50 pcs. BFB02103
BFB02104-Spring Clip – Screwless Support Rail Spring Clip (Screwless Support Rail) 25 pcs. BFB02104

Frame Tools

  Description Unit Order no.
BFB08001-Countersink Cutter – 3mm Countersink Cutter – 3 mm 1 pc. BFB08001
BFB08002-Countersink Cutter – 4mm Countersink Cutter – 4 mm 1 pc. BFB08002
BFB08003-Counterbore Cutter – 5mm Counterbore Cutter – 5 mm 1 pc. BFB08003
BFB08004-Adjustable Counterbore-Countersink Kit Adjustable Counterbore / Countersink Kit 1 pc. BFB08004
BFB08006-Receiver System Frame Clamp RECEIVER SYSTEM Frame Clamp 2 pcs. BFB08006

Adhesive Runner

  Description Unit Order no.
BFB07024-Adhesive-Runner-5.0 × 3.0mm Adhesive Runner 5.0 × 3.0 mm × 1200 mm 10 pcs. BFB07024
BFB07025-Adhesive-Runner-6.0 × 3.0mm Adhesive Runner 5.0 × 3.0 mm × 1200 mm 10 pcs. BFB07025
BFB07026-Adhesive-Runner-8.0 × 3.0mm Adhesive Runner 5.0 × 3.0 mm × 1200 mm 10 pcs. BFB07026

Machine Frame Mounting Hardware

  Description Unit Order no.
BFB07011-Quick Lock-Lower Left Quick Lock Lower Left 5 pcs. BFB07011
BFB07012-Quick Lock-Lower Right Quick Lock Lower Right 5 pcs. BFB07012
BFB07013-Quick Lock Kit Quick Lock Kit 1 pc. BFB07013
BFB07014-Bracket-Centerline – Front Mount Bracket – Centerline – Front Mount 10 pcs. BFB07014
BFB07015-Overclamp Overclamp 2 pcs. BFB07015
BFB07016-Stop Bracket PER Stop Bracket PER 10 pcs. BFB07016
BFB07017-Stop Bracket Kit PER ER Stop Bracket Kit PER / ER 5 pcs. BFB07017
BFB07018-Gripper Finger Support Gripper Finger Support 2 pcs. BFB07018
BFB07019-Mounting Bracket SP 142-ER Mounting Bracket SP 142-ER 2 pcs. BFB07019
BFB07020-Mounting Bracket Kit SP-142 Mounting Bracket Kit SP 142-ER  1 pc. BFB07020
BFB07021-Overclamp Left SP 142-ER Overclamp Left SP 142-ER 5 pcs. BFB07021
BFB07022-Overclamp Right SP 142-ER Overclamp Right SP 142-ER 5 pcs.  BFB07022
BFB07023-Overclamp Set SP 142-ER Overclamp Set SP 142-ER 1 pc. BFB07023

Lower Board Support

  Description Unit Order no.
BFB07111-Lower-Board-Support-Body Lower Board Support Body 10 pcs. BFB07111
BFB07112-Lower-Board-Support-Assembly Lower Board Support Assembly 10 pcs. BFB07112

Oferta

Dział sprzedaży

Joanna Lewandowska

tel. +48 52 354 61 55

Andrzej Sekita

tel. +48 52 354 61 55

Krzysztof Olejnik

tel. +48 52 566 82 74

Pomoc techniczna:

Jerzy Filc

tel. +48 603 181 062

Ta witryna używa pliki cookie. Korzystając ze strony wyrażasz zgodę na używanie plików cookie zgodnie z aktualnymi ustawieniami przeglądarki.
Możesz je w każdej chwili zmienić. Aby dowiedzieć się więcej o plikach cookies lub je usunąć
zapoznaj się z zasadami wykorzystania plików cookies  .

© 2012 - 2024   INTERAS - Materiały do sztancowania opakowań z tektury i do produkcji wykrojników

Projekt i wykonanie: MK-Advice
